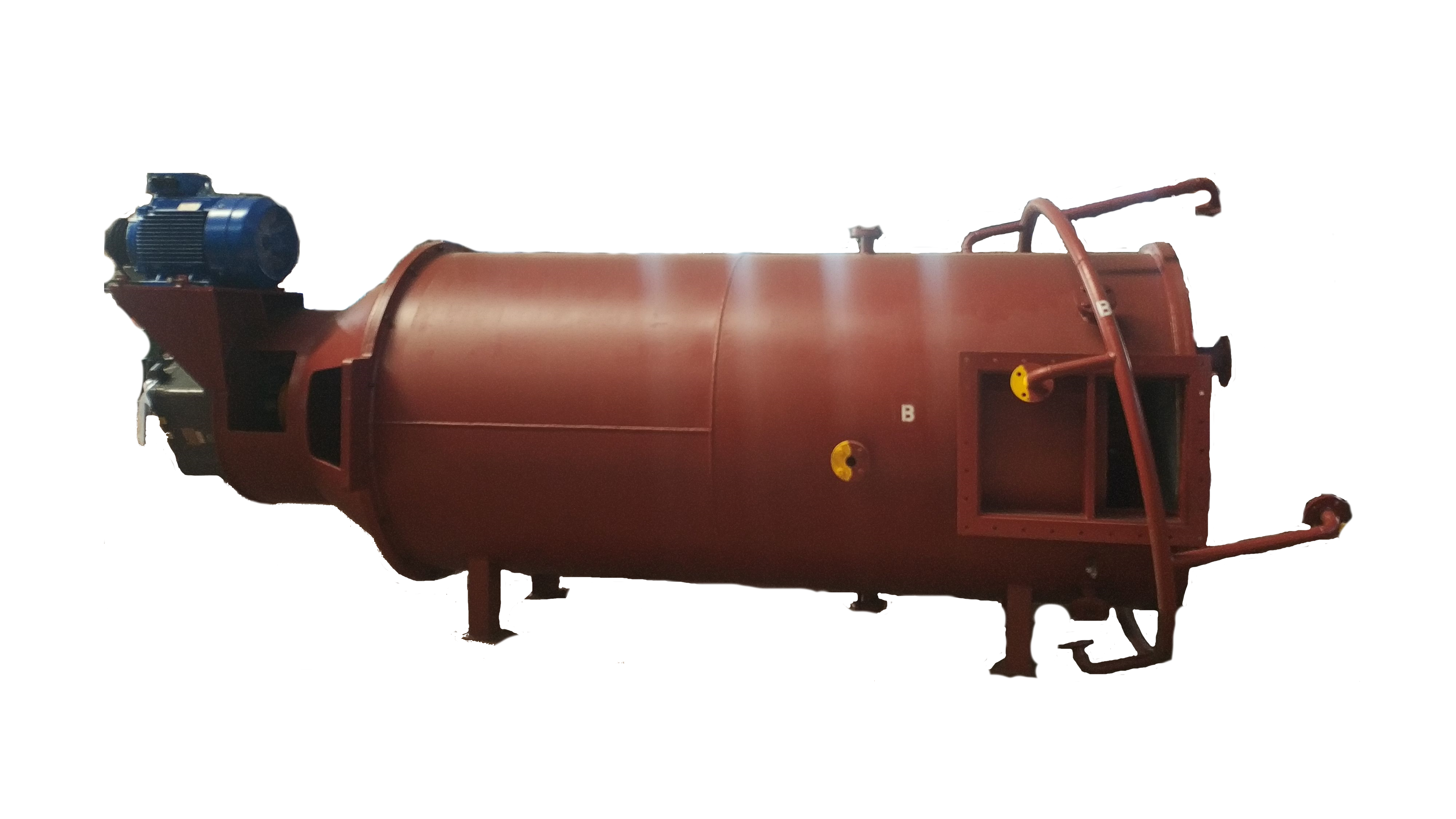

GS Digester
MAIN FEATURES
Different Digester to suit our GS Screw Press with sizes of 3500L, 4500L and 6000L.
Digester Arm in C-Type Arrangement (5 levels Beater Arms & 1 Expeller Arm).
Latest Digester Design with 4 Inspection Holes and 4 Drain Holes.
VARIANTS
3500L 4500L 6000L
Request For Free Quotation
GS Digester
MAIN FEATURES
Different Digester to suit our GS Screw Press with sizes of 3500L, 4500L and 6000L.
Digester Arm in C-Type Arrangement (5 levels Beater Arms & 1 Expeller Arm).
Latest Digester Design with 4 Inspection Holes and 4 Drain Holes.
VARIANTS
3500L 4500L 6000L
Request For Free Quotation
Overview
Specification
Gallery

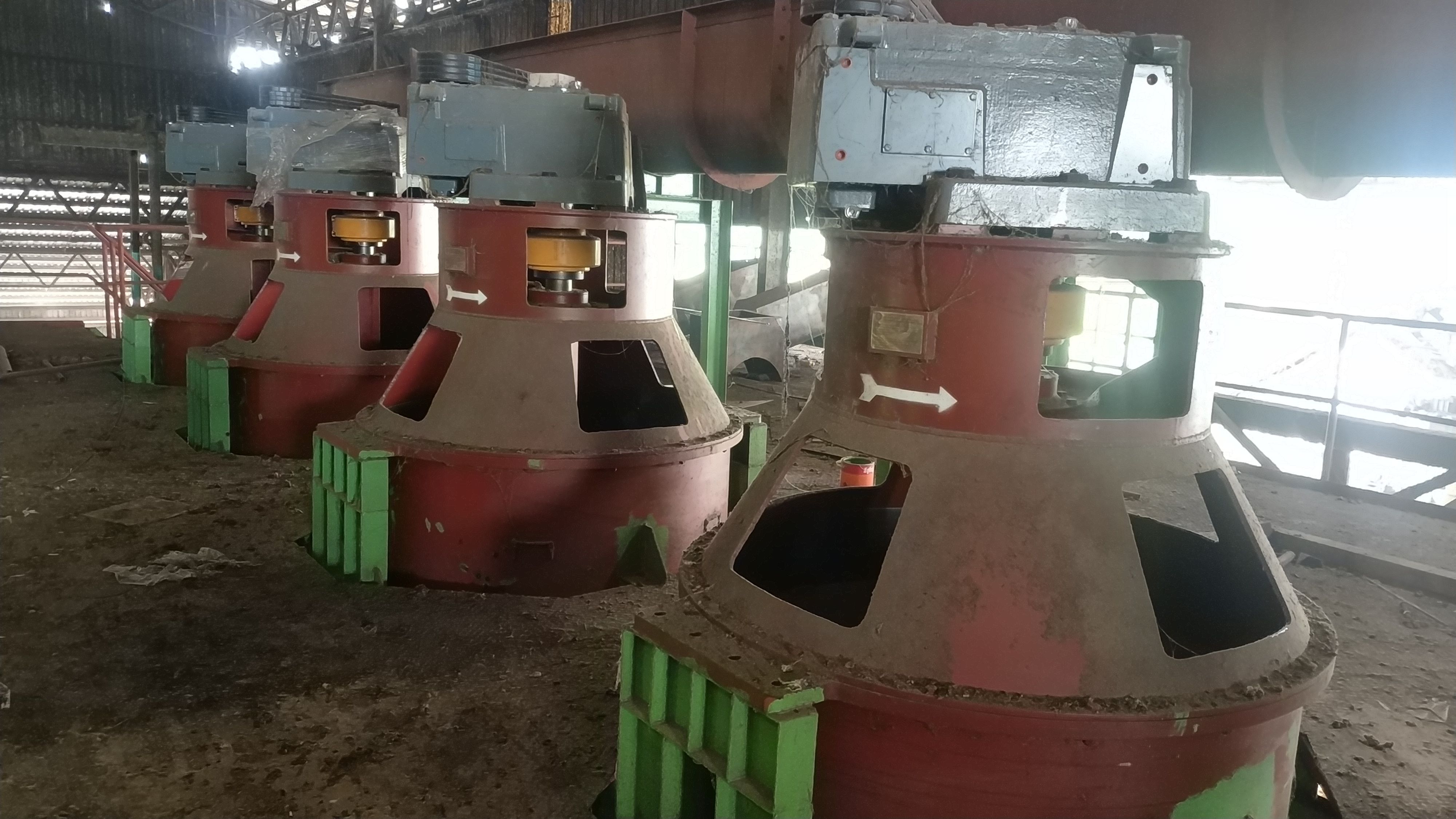

Introduction
GS Digester is like a big blender and has a central shaft with arms that rotate and mesh up the fruit. The rotating arms will break up the oil cells and conditions the fibre for pressing later in GS-Press. GS Digester also has a non jacketed steam pipe that used to cook the palm fruit and broke the cell of the pulp for greater efficiency of releasing the Crude Palm Oil. The Output of the mash will goes towards the GS Twin Screw Press and overflow crude palm oil will flow towards the oil gutter

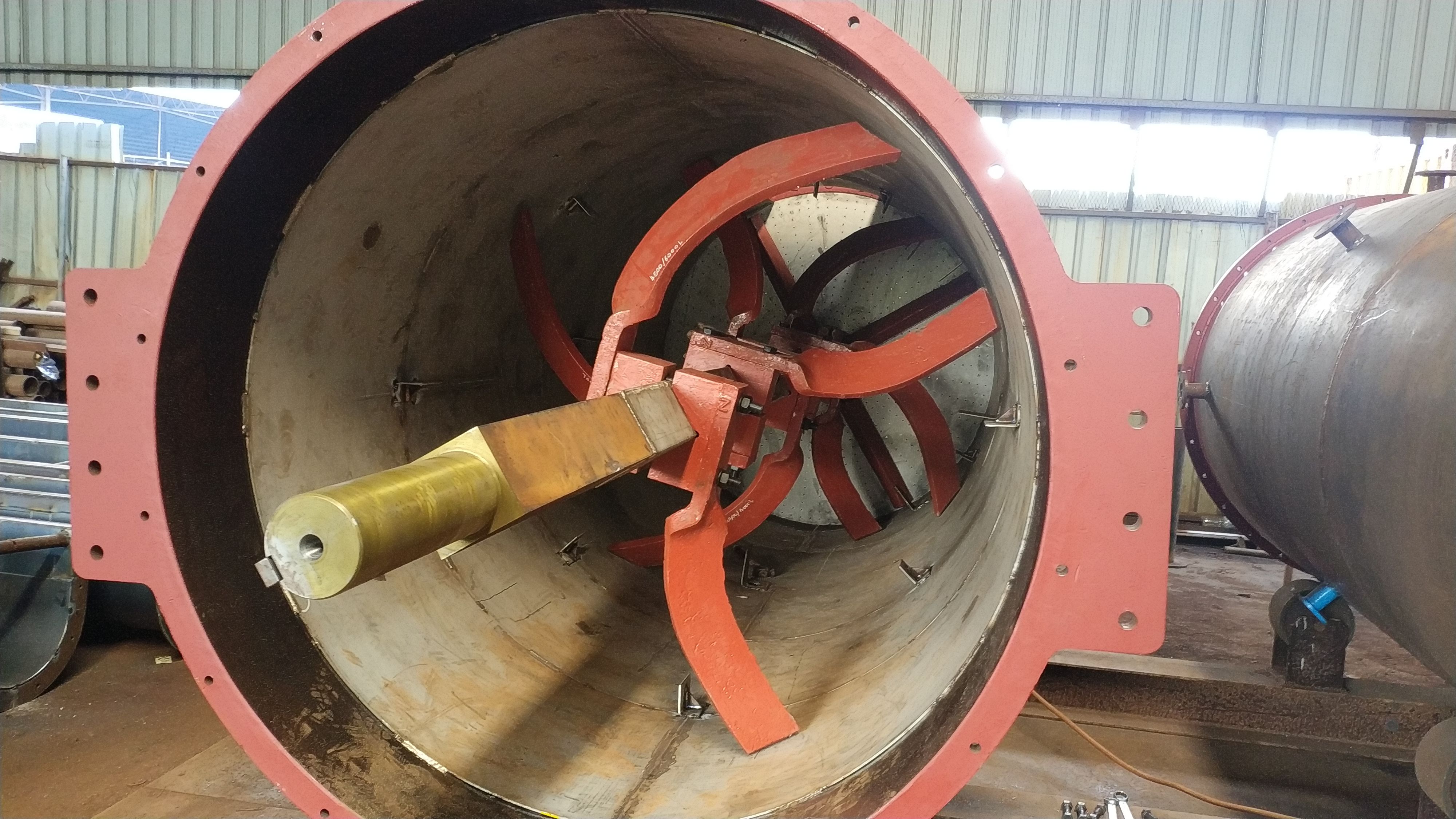

C-Type Arrangement Beater Arm
Interior of Digester consists of 5 Beater Arms with 1 Expeller Arm. The Orientation of the 5 Beater Arms arranged from the Top to Bottom in 90 degree counter clockwise installation for the maximum efficiency and consistency of blending within the Digester.

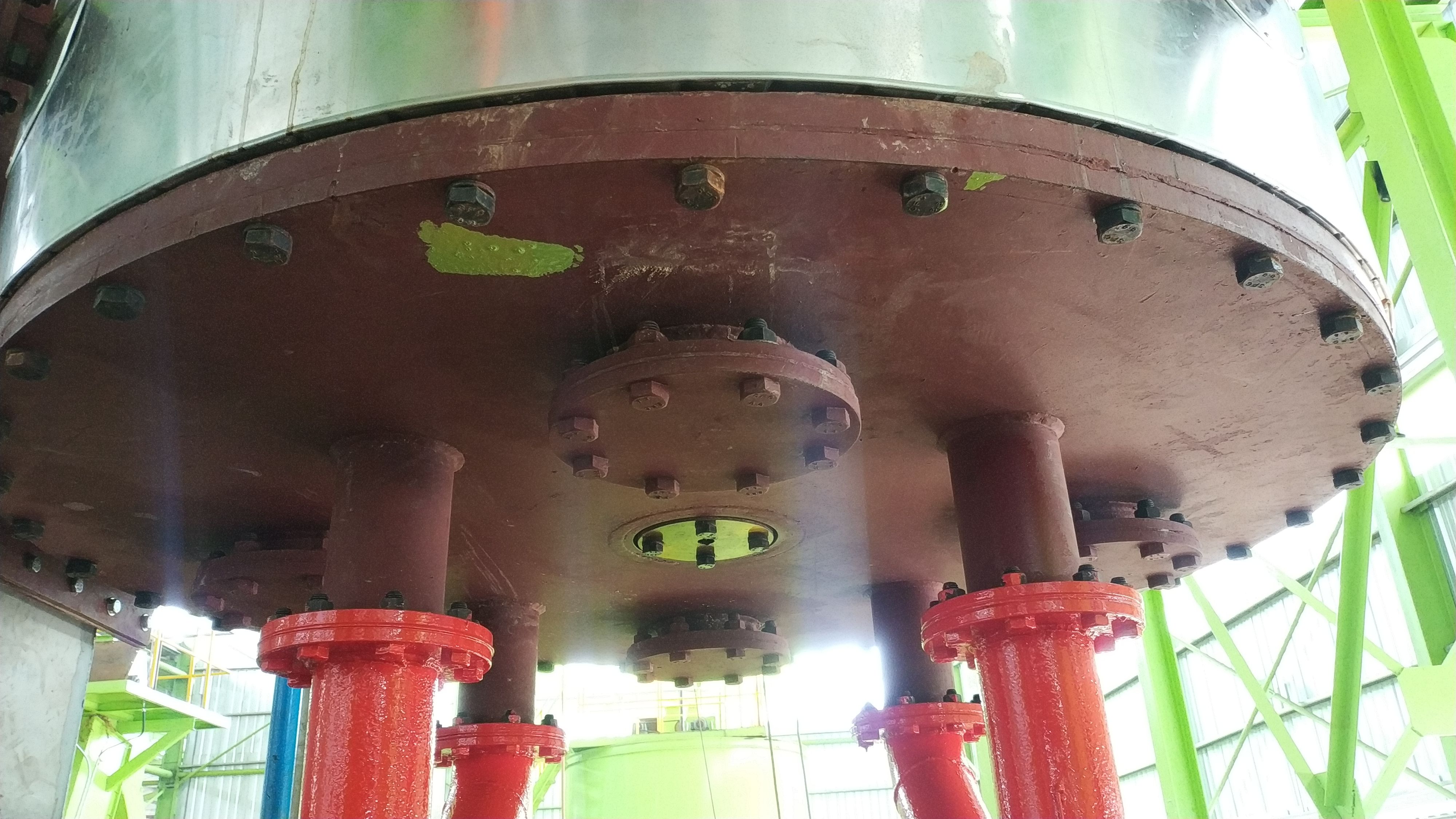

Four(4) Inspection Holes and Four (4) Drainage Holes
GS Digester has 4 Insepection Holes and 4 Drainage Holes on the Bottom Plate. Four of these drainage pipes (100mm Diameter) will assist on mitigating any possible chokage issues that prevents the overflow Crude Palm Oil goes to the Twin Screw Press.

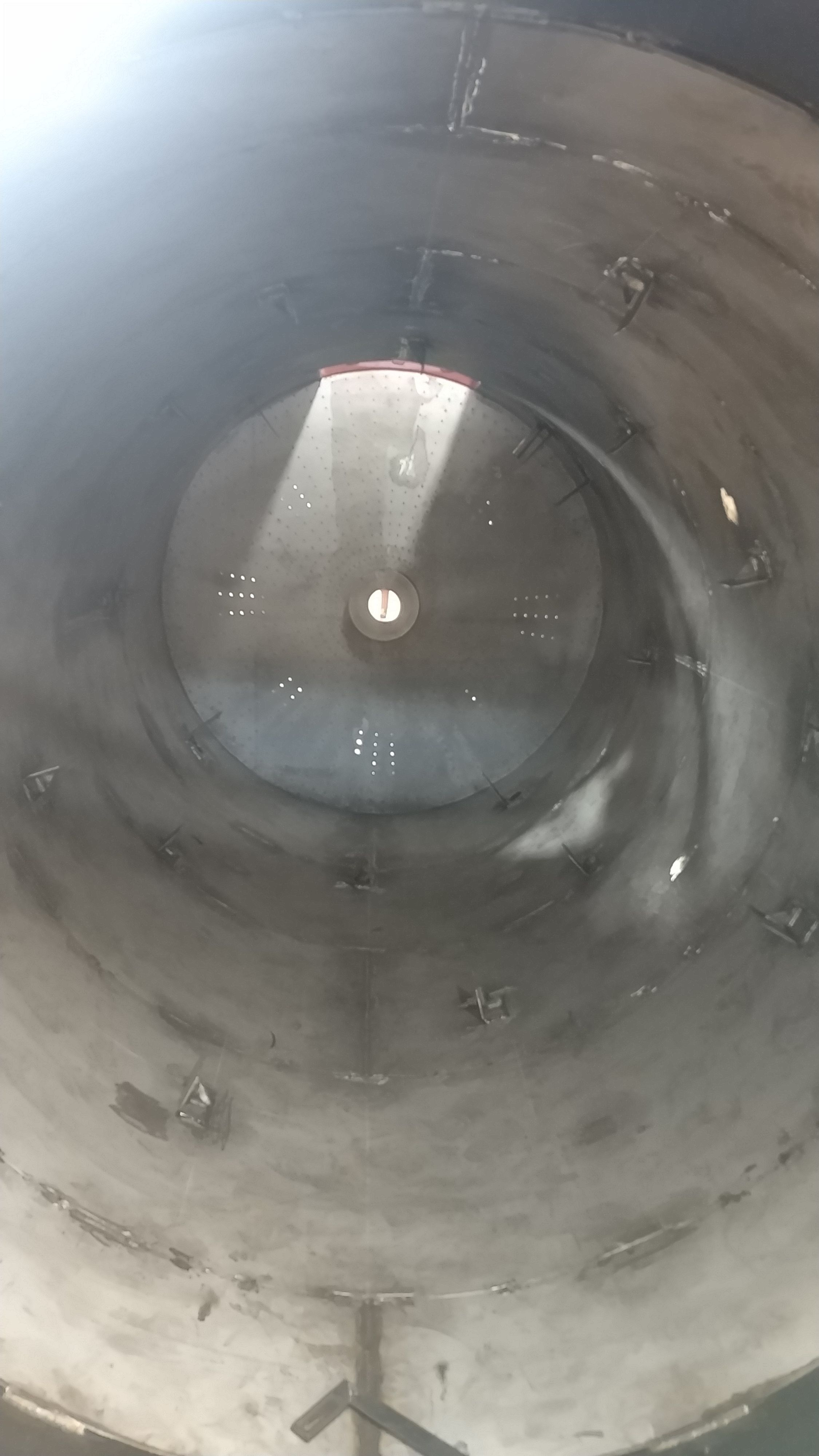

Full Stainless Steel Bottom Perforated Plate
GS Digester has a Full Stainless Steel of 12mm thickness of Stainless Steel (304) Bottom Perforated Plate of around 1000 Tapered Holes that assists on draining out the additional Crude Palm Oil to the Oil Gutter.
Introduction
GS Digester is like a big blender and has a central shaft with arms that rotate and mesh up the fruit. The rotating arms will break up the oil cells and conditions the fibre for pressing later in GS-Press. GS Digester also has a non jacketed steam pipe that used to cook the palm fruit and broke the cell of the pulp for greater efficiency of releasing the Crude Palm Oil. The Output of the mash will goes towards the GS Twin Screw Press and overflow crude palm oil will flow towards the oil gutter
C-Type Arrangement Beater Arm
Interior of Digester consists of 5 Beater Arms with 1 Expeller Arm. The Orientation of the 5 Beater Arms arranged from the Top to Bottom in 90 degree counter clockwise installation for the maximum efficiency and consistency of blending within the Digester.
Four(4) Inspection Holes and Four (4) Drainage Holes
GS Digester has 4 Insepection Holes and 4 Drainage Holes on the Bottom Plate. Four of these drainage pipes (100mm Diameter) will assist on mitigating any possible chokage issues that prevents the overflow Crude Palm Oil goes to the Twin Screw Press.
Full Stainless Steel Bottom Perforated Plate
GS Digester has a Full Stainless Steel of 12mm thickness of Stainless Steel (304) Bottom Perforated Plate of around 1000 Tapered Holes that assists on draining out the additional Crude Palm Oil to the Oil Gutter.
GS Digester
3500L 4500L 6000L
Shell Length 2845mm 3000mm 3350mm
Internal Diameter 1270mm 1500mm 1520mm
Motor Size 30kW 37kW 45kW
Speed Reducer Sumitomo YVD060P3DG or equivalent
Beater Arm Arrangement C-Type
Bottom Plate 12mm Stainless Steel Perforated Plate (~1000 Holes)
Retention Time ~15 minutes ~20 minutes ~17 minutes
