GS 8T Empty Fruit Bunch Cutter
MAIN FEATURES
Cutting Empty Fruit Bunch into Length 80-120mm
Low Maintenance Cost
Simple Maintenance
Able to cut hard and unstripped empty bunches
Request For Free Quotation
GS 8T Empty Fruit Bunch Cutter
MAIN FEATURES
Cutting Empty Fruit Bunch into Length 80-120mm
Low Maintenance Cost
Simple Maintenance
Able to cut hard and unstripped empty bunches
Request For Free Quotation
Overview
Specification
Gallery
Introduction

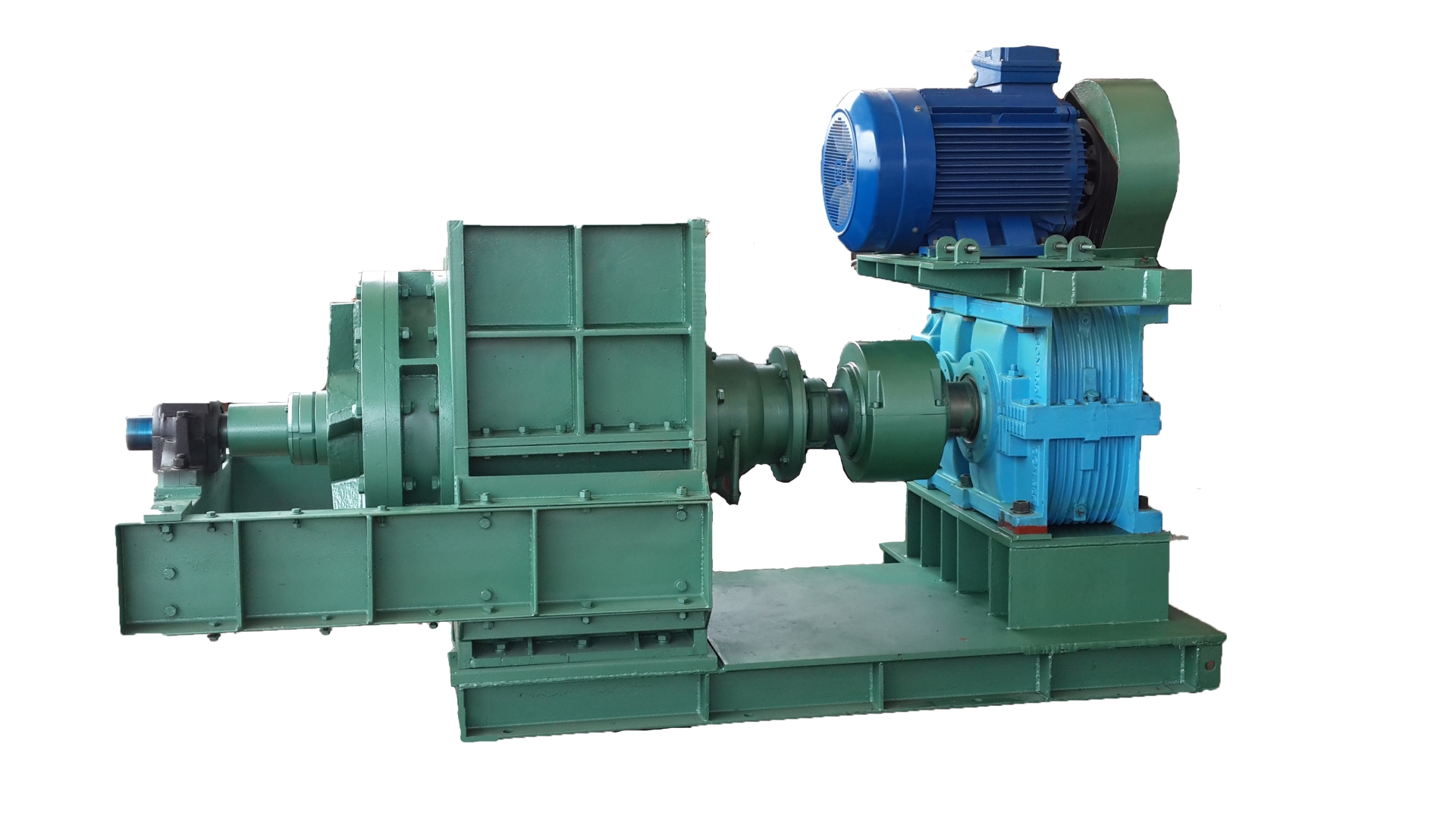

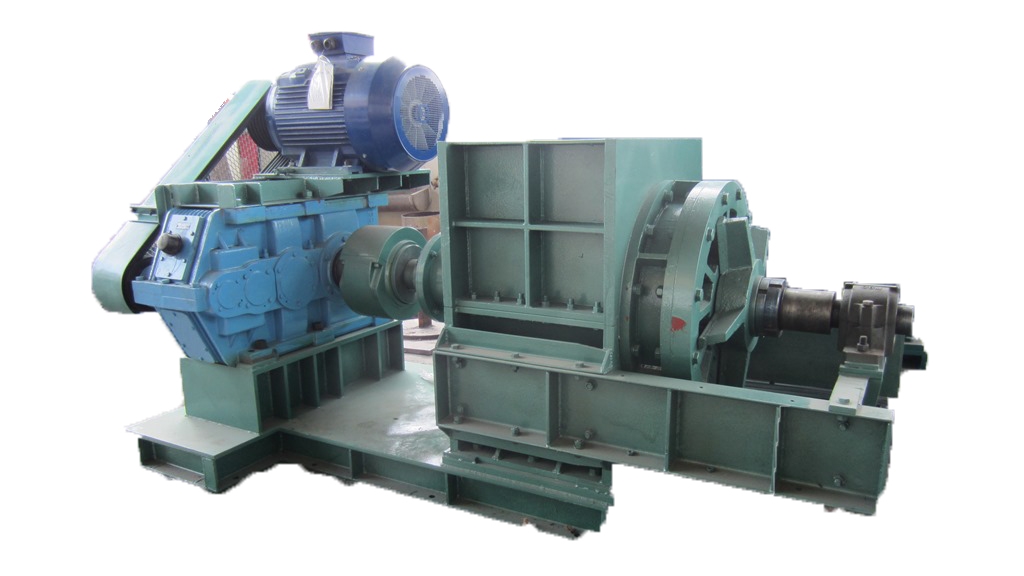

The GS 8T Empty Fruit Bunch Cutter for cutting from the Empty Fruit Bunch to the shredded fiber length of 80-120mm.
The Machine will condition the Empty Fruit Bunch for the next feeding into Empty Fruit Bunch Press.
High Throughput EFB Cutter
GS 8T Empty Fruit Bunch Cutter, perform with guarantee capacity of 8-10 MT per hour of Empty Fruit Bunch, where many other machines of the same application is unable to compete.
Solid and Robust Construction of Mono Worm Screw

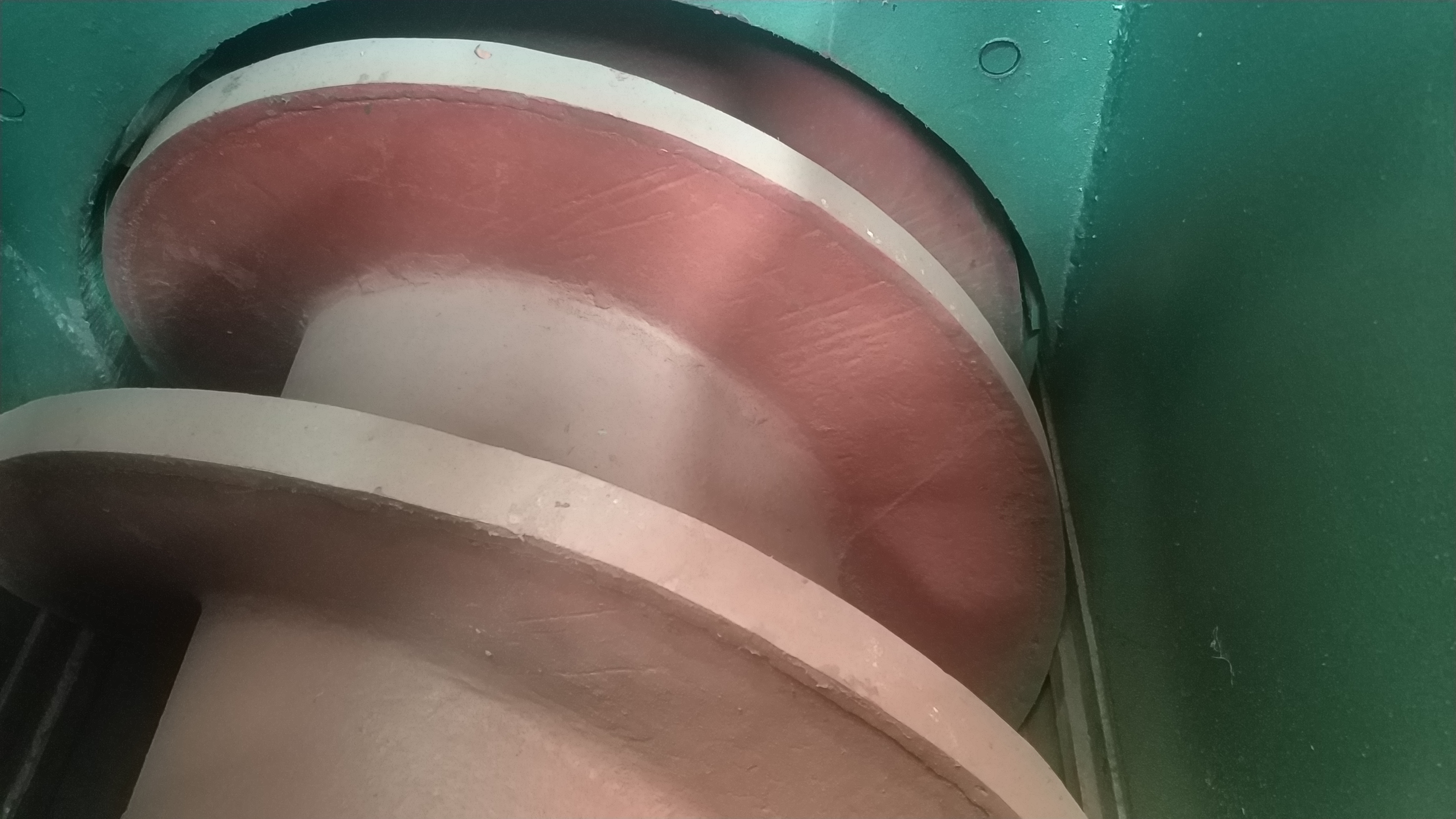

The Huge Worm Screw that located in the EFB Cutter Body designed to push the Empty Bunch to the Cutting Section. Notice the Variable Pitch on the Worm Screw which allows the Hard and Large Bunch to cut with relative ease
Cutting in Multi-Stages

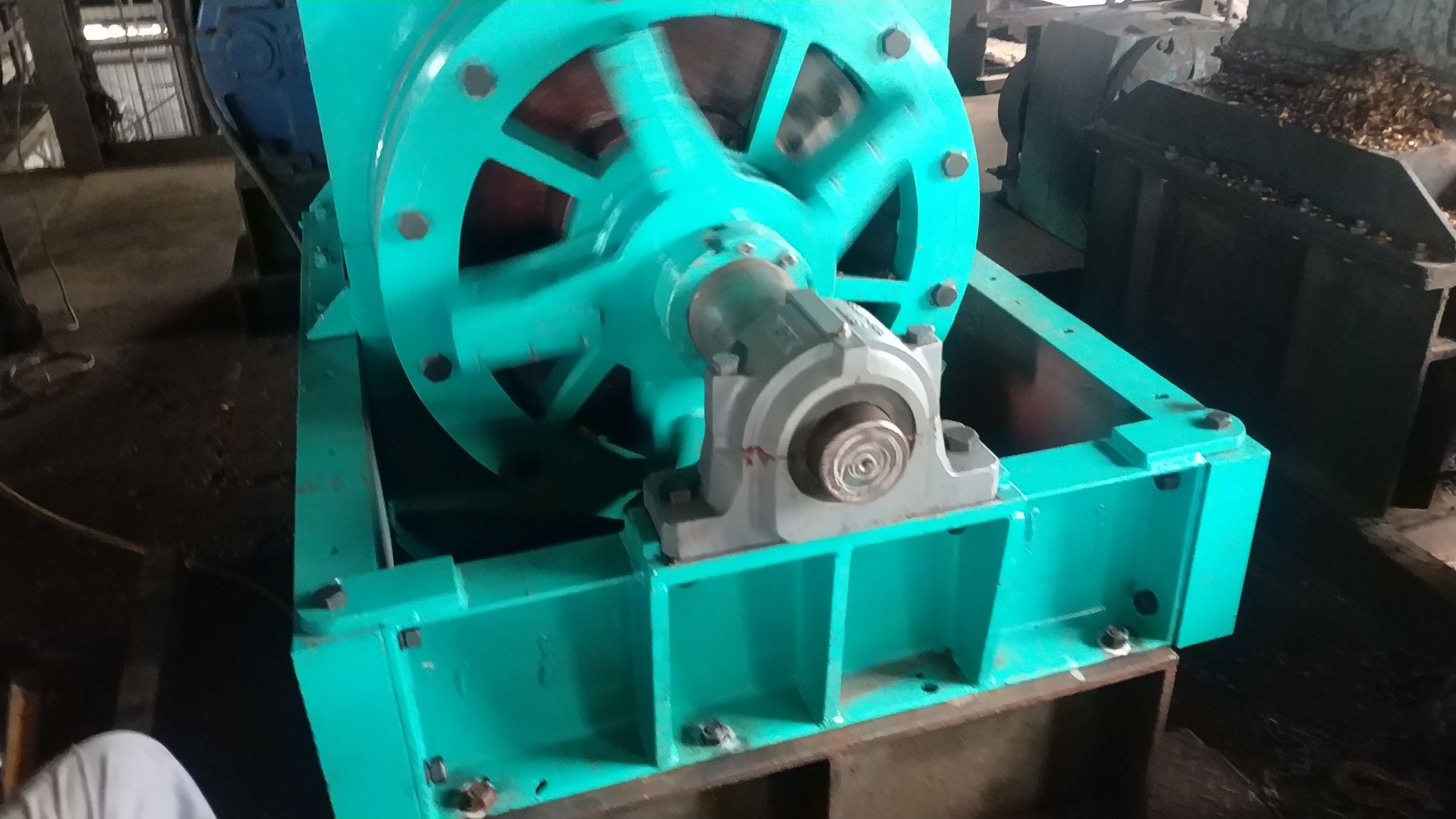

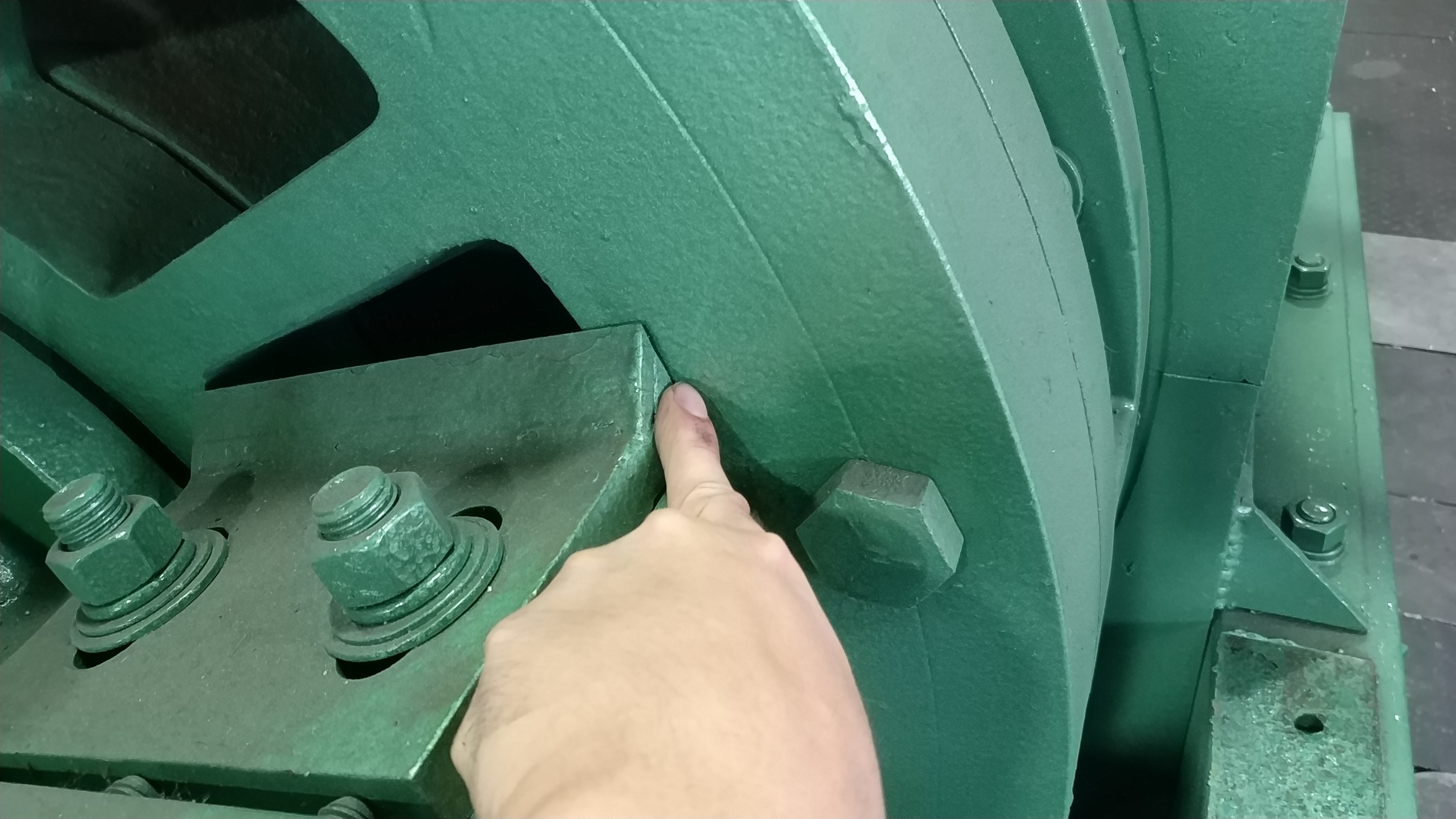

GS 8T Empty Fruit Bunch Cutter is equipped with two (2) inner and five (5) outer knives and also with Liner Bars on the Body, designed to slice the clusters of Empty Fruit Bunch to the Shredded Fiber with relatively ease. The Cutting Knives which are the Wear and Tear Parts of the Machine can be easily replaced without dismounting the whole machine.
Introduction
The GS 8T Empty Fruit Bunch Cutter for cutting from the Empty Fruit Bunch to the shredded fiber length of 80-120mm.
The Machine will condition the Empty Fruit Bunch for the next feeding into Empty Fruit Bunch Press.
High Throughput EFB Cutter
GS 8T Empty Fruit Bunch Cutter, perform with guarantee capacity of 8-10 MT per hour of Empty Fruit Bunch, where many other machines of the same application is unable to compete.
Solid and Robust Construction of Mono Worm Screw
The Huge Worm Screw that located in the EFB Cutter Body designed to push the Empty Bunch to the Cutting Section. Notice the Variable Pitch on the Worm Screw which allows the Hard and Large Bunch to cut with relative ease
Cutting in Multi-Stages
GS 8T Empty Fruit Bunch Cutter is equipped with two (2) inner and five (5) outer knives and also with Liner Bars on the Body, designed to slice the clusters of Empty Fruit Bunch to the Shredded Fiber with relatively ease. The Cutting Knives which are the Wear and Tear Parts of the Machine can be easily replaced without dismounting the whole machine.
GS 8T Empty Fruit Bunch Cutter
Motor 75 kW x 1450 rpm
Gearbox Sumitomo YHD080P3 ratio 25/1 and equivalent
Reducer Torque 74,000 Nm
Screw Mono Screw Type Design c/w 2 rotating cutting knife
Die Plate Cast Steel, Die Plate with twelve equal sections cutting edge c/w hard facing
Cutting Knife Cast Steel knife with 5 cutting edges c/w hard facing
Speed 30-35 rpm
Capacity 8-10 tons EFB per hour
