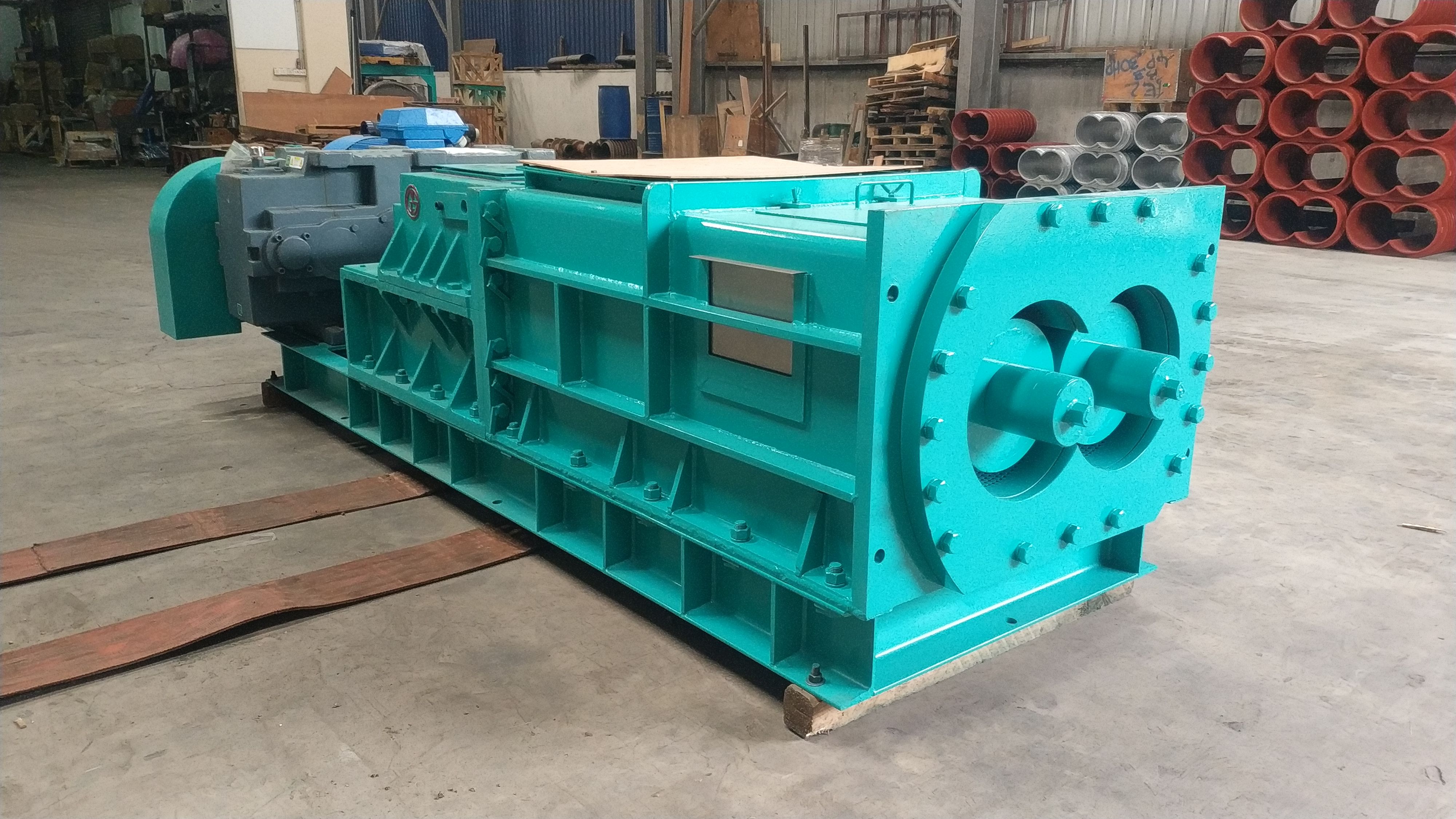

GS 8T Empty Fruit Bunch Press
MAIN FEATURES
Heavy Duty Press Casing for shock loads and distrotion free frame.
Split Type casing for easy maintenace.
Separate location for spur gears for contamination free bearing section.
Wobble free, stronger drive shafts to eliminate Key-Keyway, shaft failures.
Higher duty bearings for longer life.
Request For Free Quotation
GS 8T Empty Fruit Bunch Press
MAIN FEATURES
Heavy Duty Press Casing for shock loads and distrotion free frame.
Split Type casing for easy maintenace.
Separate location for spur gears for contamination free bearing section.
Wobble free, stronger drive shafts to eliminate Key-Keyway, shaft failures.
Higher duty bearings for longer life.
Request For Free Quotation
Overview
Specification
Gallery
Introduction
Empty Fruit Bunches (EFB) produced from the palm oil mill process with moisture content above 60% is hardly suitable to be utilized in commercial purposes. Ths GS Empty Fruit Bunch Press is specially designed & developed to produce EFB fibre of 42% - 45%, which can be directly transport to boiler for fuel or biomass compass. Besides that, the press juice recovered contains a small percentage of sludge oil, which can be marketed as a by-product.
Guarantee Pressed Fiber of 42 - 45% Moisture
GS 8T Empty Fruit Bunch Press utilizes Twin Screw Press, which enables maximum efficiency of Oil Recovery and achieving lowest moisture content level for pressed fiber.
GS Special Design Intermediate Gearbox
The GS Special Design Intermediate Gearbox for EFB Press inherited from the prestige GS Twin Screw Press. It uses the similar design that allows separation of External Spur Gear and Bearings to minimize oil contamination and maximize life spans of the Bearings and Shafts.
No Hydraulic Cylinder Needed
The Special Design of Empty Bunch Press eliminates the needs of Hydraulic Cylinder and Power Pack thus inducing a huge cost reduction on the pressing operation. As the Twin Screw Press is designed to press the moisture out of the Empty Fruit Bunch, the Constant Pressure from the Twin Screw is sufficient to do the job.
Introduction
Empty Fruit Bunches (EFB) produced from the palm oil mill process with moisture content above 60% is hardly suitable to be utilized in commercial purposes. Ths GS Empty Fruit Bunch Press is specially designed & developed to produce EFB fibre of 42% - 45%, which can be directly transport to boiler for fuel or biomass compass. Besides that, the press juice recovered contains a small percentage of sludge oil, which can be marketed as a by-product.
Guarantee Pressed Fiber of 42 - 45% Moisture
GS 8T Empty Fruit Bunch Press utilizes Twin Screw Press, which enables maximum efficiency of Oil Recovery and achieving lowest moisture content level for pressed fiber.
GS Special Design Intermediate Gearbox
The GS Special Design Intermediate Gearbox for EFB Press inherited from the prestige GS Twin Screw Press. It uses the similar design that allows separation of External Spur Gear and Bearings to minimize oil contamination and maximize life spans of the Bearings and Shafts.

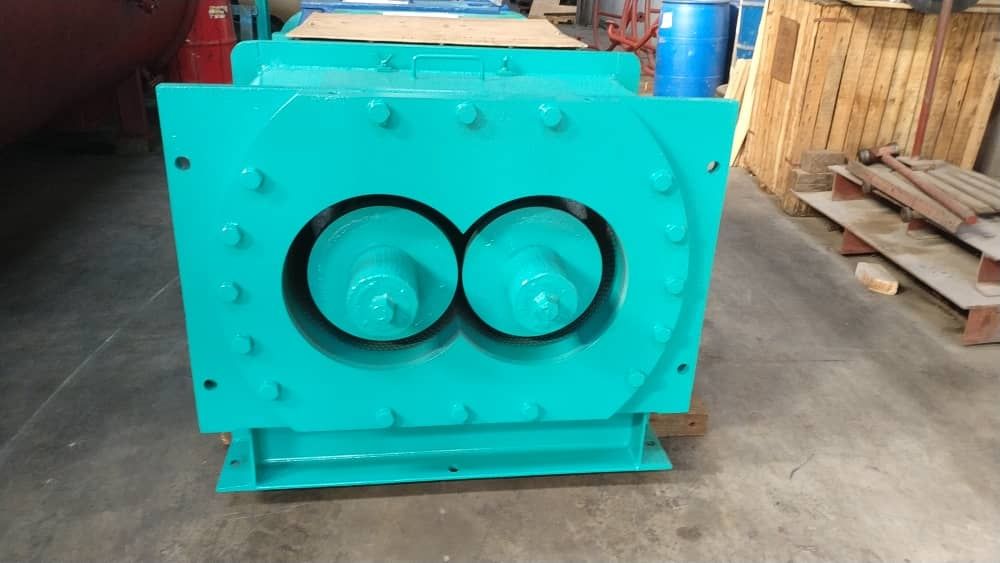

No Hydraulic Cylinder Needed
The Special Design of Empty Bunch Press eliminates the needs of Hydraulic Cylinder and Power Pack thus inducing a huge cost reduction on the pressing operation. As the Twin Screw Press is designed to press the moisture out of the Empty Fruit Bunch, the Constant Pressure from the Twin Screw is sufficient to do the job.

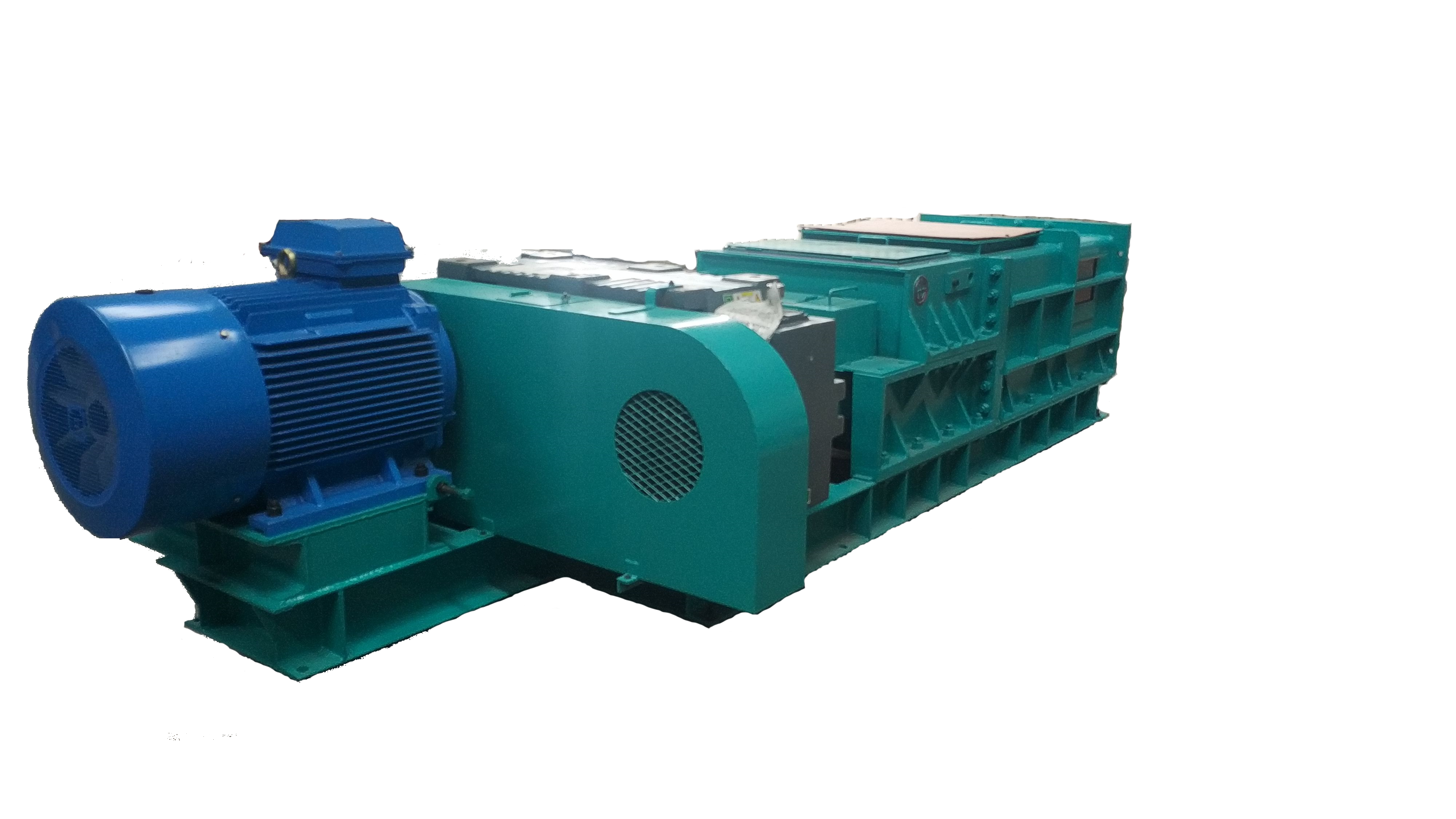

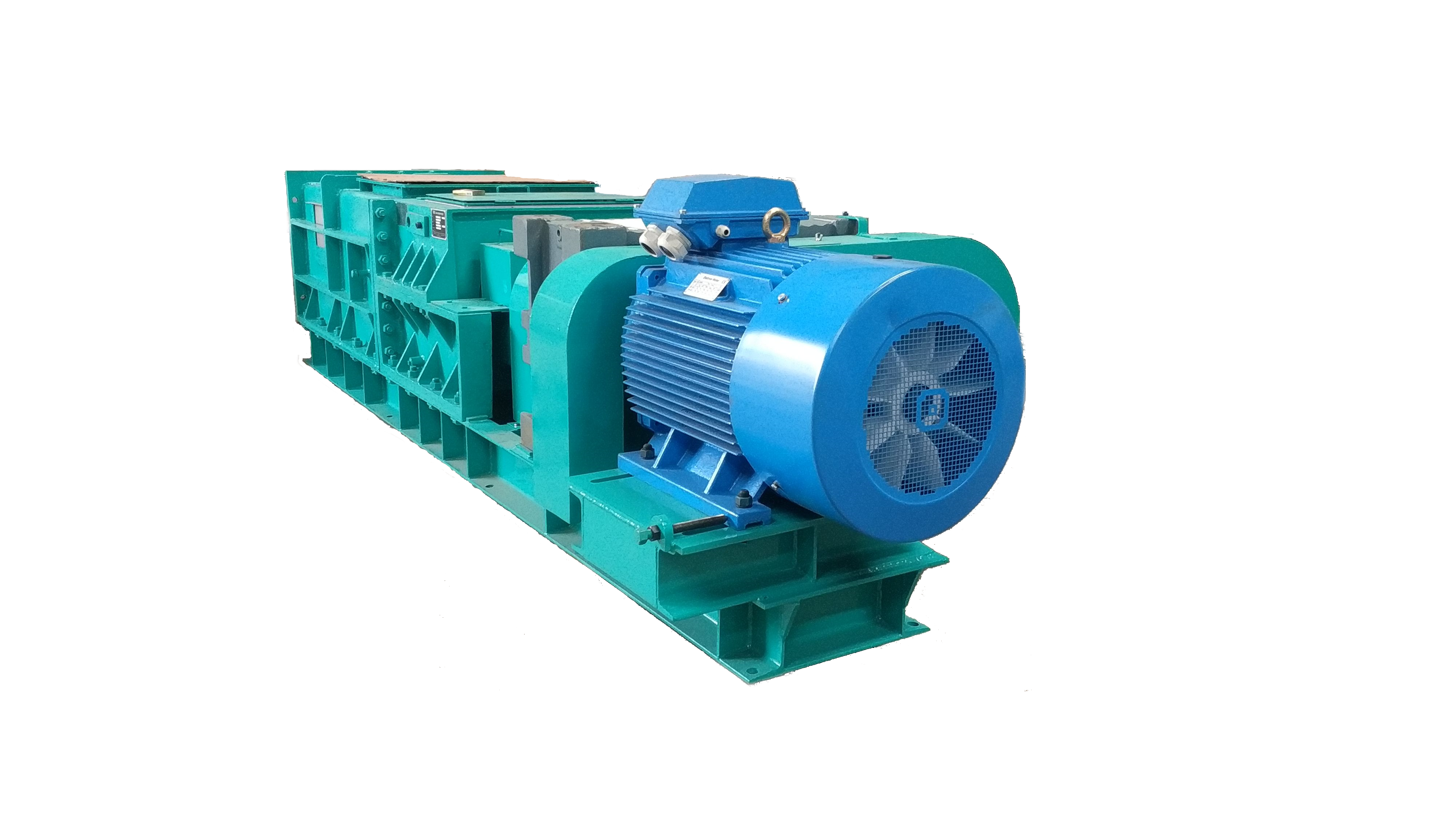

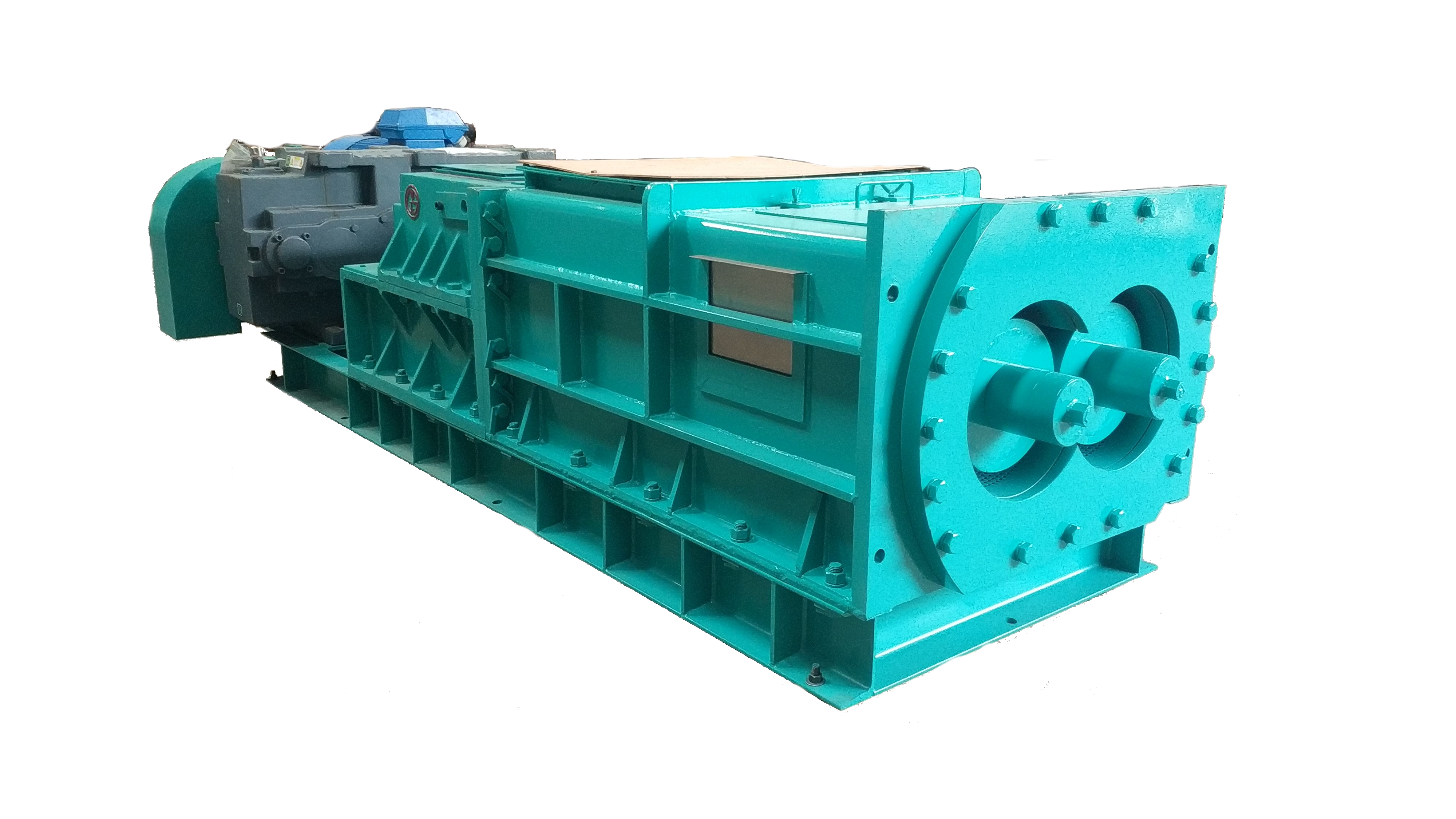

GS 8T Empty Fruit Bunch Press
Motor 90 kW x 1450 rpm
Gearbox Sumitomo YHD080P3 ratio 56/1 and equivalent
Reducer Torque 74,000 Nm
Press Final Speed 16 to 18 rpm
Capacity 8-10 tons EFB Fibre per hour
